Electric Wheelchair Transportation: The Ultimate Guide

October 24, 2025

Electric wheelchairs provide users with greater independence and freedom of movement, but transporting them safely can be challenging. Their size, weight, and sensitive electronic components necessitate more than just a standard vehicle or ramp. Whether you’re a caregiver or an individual navigating the world of accessible transportation, this guide will walk you through everything you need to know about electric wheelchair transportation, from choosing the right mobility van and lift to securement systems, preparation, and maintenance.

Why Electric Wheelchairs Require Special Consideration

Unlike a manual wheelchair, an electric wheelchair is heavier, bulkier, and powered by sensitive electronics. These factors make transportation more complex, which is why specialized vans, wheelchair lifts, and securement systems are necessary for safety and compliance.

Size & Weight Differences

Electric wheelchairs can weigh anywhere from 150 to 400 pounds, not including the passenger. Not all vehicles have the carrying capacity required for electric wheelchairs, so it’s important to consider whether your vehicle can safely carry both the wheelchair and its user. This means not all vehicles or ramps can safely accommodate them. Choosing the correct wheelchair lift for van compatibility is crucial to prevent damage and ensure safe loading.

Power & Electronic Components

Electric wheelchairs are powered by intricate batteries and wiring systems. As a sensitive electronic device, the wheelchair must be handled with care during transport to prevent damage to its components. During transport, it’s essential to keep the chair stable and secure to avoid jolts or movement that could cause electronic malfunctions. Because of their electronics, they’re unable to be hauled outside the vehicle, as it exposes them to potentially damaging weather conditions.

ADA Compliance & Safety

The Americans with Disabilities Act (ADA) establishes standards for accessible transportation, including the securement of wheelchairs and passenger safety. When operating a vehicle for public transportation, the ADA requires adequate lifts, ramps and securement devices. Lifts must have a minimum design load of 600 pounds, enough to accommodate most electric wheelchairs and the individual.

The operator of the vehicle or lift is responsible for ensuring ADA compliance and passenger safety, including proper use of securement devices and adherence to safety regulations.

Best Vehicle Options for Transporting Electric Wheelchairs

Choosing the right vehicle is critical when transporting an electric wheelchair safely and comfortably. Factors such as interior space, door access, lift compatibility, and daily use all come into play.

There are several types of vehicles commonly used for electric wheelchair transportation, including car, truck, pickup truck, regular sedan, minivan, conversion van, used conversion van, and wheelchair accessible van. Some of these vehicles can be equipped with ramps, lifts, or securement systems to accommodate wheelchairs. Minivans and conversion vans, especially wheelchair accessible vans, are popular choices due to their spacious interiors and ability to be fitted with ramps or lifts. Pickup trucks can utilize a wheelchair hoist to lift the wheelchair into the truck bed, but it is important to ensure the wheelchair is properly secured during transit. For those using a regular sedan, space and compatibility may be limited for larger mobility devices. Additionally, a bumper-mounted rack can be attached to the vehicle’s bumper to carry the wheelchair externally, providing another secure transport option.

Here’s a breakdown of the main options:

Side-Entry vs. Rear-Entry Vans

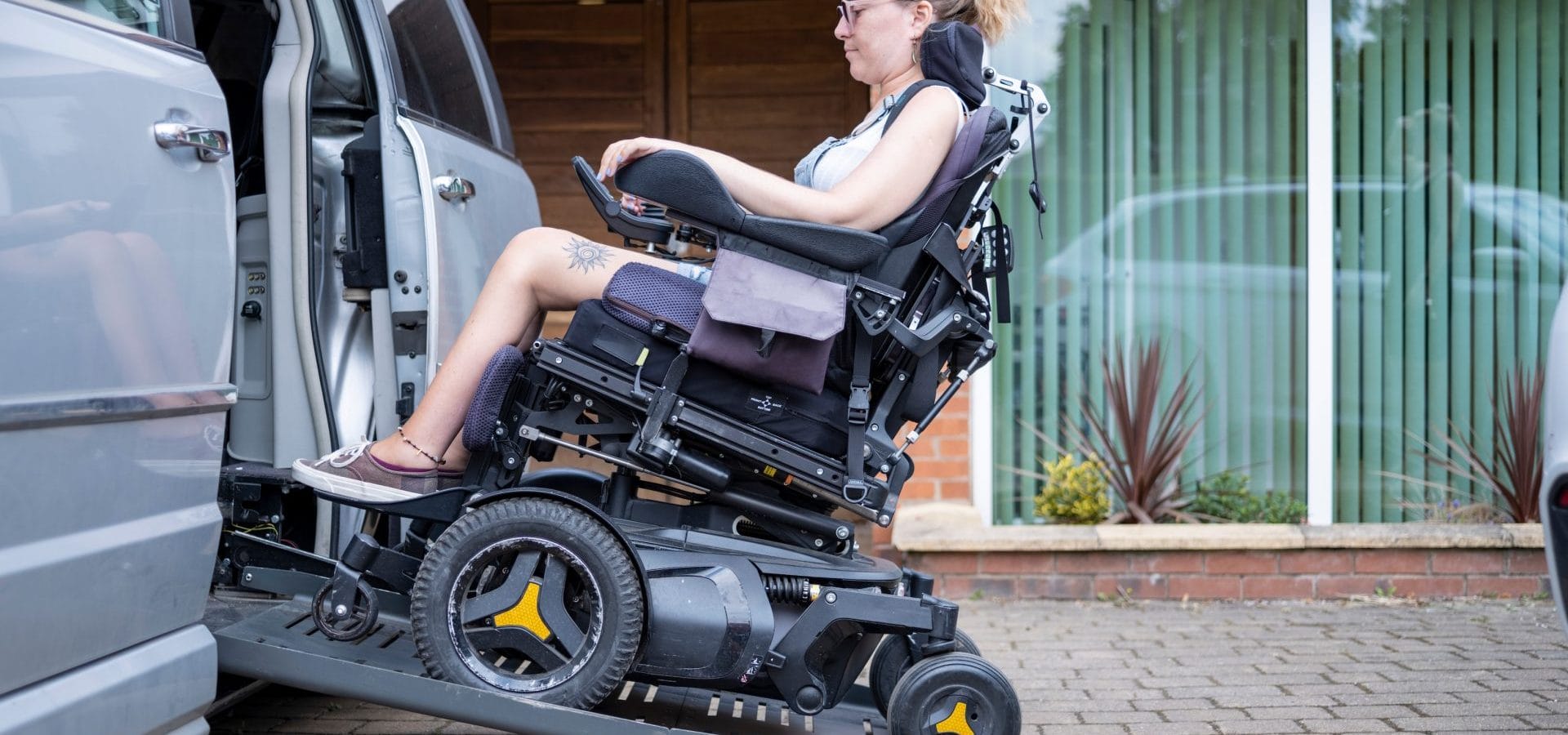

Side-Entry Vans:

Pros: Side-entry vans provide convenient curbside access, making it easier for users to roll directly onto the lift or ramp. They also allow more flexible seating arrangements, which is helpful when traveling with multiple passengers or additional mobility equipment. The placement and configuration of seats can impact how securely a wheelchair is fastened and influence overall passenger safety during travel.
Cons: The deployment area for the ramp or lift may require more clearance, which can be tricky in tight driveways or crowded streets. Installing advanced lift systems can also be more expensive.

Rear-Entry Vans:

Pros: Rear-entry vans are easier to park in narrow spaces since the ramp or lift extends from the back. This setup often allows the electric wheelchair to face forward during travel, providing more stability and comfort.
Cons: Loading from the rear may be less convenient in public spaces, and the vehicle’s interior may be less configurable for additional passengers or equipment.

Best for Electric Wheelchairs: Side-entry vans are generally preferred for users who need frequent independent loading and unloading, while rear-entry vans are a solid choice for single-passenger use or when parking space is limited.

Full-size Vans vs. Minivans

Full-Size Vans:

Offer more interior space, making them ideal for larger or heavier electric wheelchairs.
Easier installation of powered lifts and advanced securement systems, ensuring safe transport for users with mobility challenges.
Best for families or caregivers transporting multiple passengers, or users who require extra space for accessories or storage.

Minivans:

More compact and easier to drive, making them suitable for users with lighter electric wheelchairs or single-passenger transport.
Can accommodate smaller lifts or docking systems, but may be limited for larger power chairs.
Best for daily errands, short trips, or urban environments where maneuverability is essential.

Recommendation: Full-size vans are generally best for heavier electric wheelchairs and frequent travel, while minivans work well for smaller power chairs and occasional transport.

When deciding between a full-size van and a minivan, it’s important to consider both the cost of vehicle modifications and your overall budget, as these factors can significantly influence your choice.

Ramps vs. Lifts

Ramps:

Suitable for lighter electric wheelchairs and occasional use.
A smooth transition from ground level to the ramp is essential for safe and easy loading of wheelchairs.
Require the user or caregiver to push or guide the wheelchair up the incline, which can be challenging for heavier power chairs.

Lifts:

The safest and most convenient option for transporting electric wheelchairs, especially heavier models.
Hydraulic or powered lifts reduce physical strain and allow secure, stable loading.
Compatible with docking and tie-down systems, ensuring the wheelchair is safely secured during transport.

Recommendation: For most electric wheelchair users, particularly those with heavier chairs or frequent travel needs, powered lifts are the preferred method. Ramps may be suitable for lighter chairs or occasional use, but require careful attention to the incline and user safety.
Choosing the Right Wheelchair Lift or Ramp

Top Wheelchair Lift Brands

Two of the most trusted brands for electric wheelchair lifts are BraunAbility and ATC Mobility. Both offer high-quality products designed for durability, ease of use, and compliance with safety standards.

BraunAbility: Known for smooth operation and reliability, BraunAbility lifts are compatible with a wide range of vehicles and wheelchair sizes. Their lifts come with excellent warranties and advanced features like automatic folding and obstacle detection.
ATC: ATC specializes in customized lift solutions and power chair docking systems for trucks. Their products are designed for frequent use, heavier electric wheelchairs, and integration with advanced securement systems. At Southern Bus, we can order ATC lifts for customers interested in wheelchair conversions for their trucks.
Choosing a lift from a trusted brand ensures long-term reliability, safe operation, and support when service is needed.

Hydraulic vs. Manual Lifts

When it comes to electric wheelchair transport, understanding lift types is crucial:

Hydraulic Lifts:
Pros: Smooth, powered operation makes loading and unloading heavy electric wheelchairs effortless. Hydraulic lifts allow users to load and unload their wheelchairs efficiently, minimizing risks and saving time.
Maintenance: Requires periodic inspection of hydraulic fluid, bolts, and electrical connections. Professional servicing ensures long-term reliability.
Safety: Provides controlled, stable lifting, reducing the risk of tipping or sudden drops.
Manual Lifts:
Pros: Affordable and mechanically simple, with fewer components to maintain.
Maintenance: Minimal, usually limited to lubrication and occasional hardware checks.
Safety: Safe for lighter chairs, but requires careful handling as manual lifting of heavier electric wheelchairs can be strenuous and less stable.

Recommendation: For electric wheelchairs, especially heavier models, hydraulic lifts are the safest and most convenient option, while manual lifts are suitable for occasional use or lighter chairs.

Ramp Grades & Safety Features

If you choose a ramp for power wheelchair transport, pay close attention to design and safety features:

Angle of Incline: A gentler slope makes it easier to load heavy electric wheelchairs safely. Steep ramps increase the risk of tipping or requiring excessive effort. A well-designed ramp also makes boarding vehicles safer and easier for wheelchair users, providing equitable access during the boarding process.
Non-Slip Surfaces: Ramps should have traction-enhancing surfaces to prevent slipping, even in wet conditions.
Portability & Storage: Foldable or telescoping ramps allow for easy storage when not in use, preserving interior space in the vehicle.
Weight Capacity: Always ensure the ramp can support the combined weight of the wheelchair and passenger.

Proper ramp selection improves safety, reduces strain on caregivers, and ensures a smoother transportation experience for electric wheelchair users.

Proper Securement: Tie-Downs, Docking Systems & Safety

Securing an electric wheelchair properly during transport is just as important as choosing the right vehicle or lift. Improper securement can lead to damage to the chair, injury to the passenger, or fines for non-compliance with safety standards.

Seat belts are crucial for passenger safety and compliance with transit regulations, and many policies require wheelchair users to wear seat belts and shoulder harnesses during transport.

For safe and reliable transport, it’s essential to understand the options available for tie-downs, docking systems, and additional restraints. Some securement systems may require the user to transfer from their wheelchair to a vehicle seat, which is an important consideration for mobility and safety.

4-Point Tie-Down Systems

A 4-point tie-down system uses four straps, one at each corner of the wheelchair, to anchor the chair to the vehicle floor. Each strap attaches to a securement point and is tightened to prevent movement.

When to Use Them:

Ideal for occasional transport or when transporting lighter electric wheelchairs.
Required for ADA-compliant transportation in many commercial or public-access vehicles.
Can be used with both rear- and side-entry vans.

Key Benefits:

Provides stable and reliable securement.
Affordable and widely available.
Simple to operate, though it may require caregiver assistance to attach and remove straps.

Power Chair Docking Systems

Power chair docking systems are designed for frequent or independent wheelchair users. The system mechanically locks the electric wheelchair into place with minimal effort.

Advantages for Daily Users:

Hands-free or low-effort securement, ideal for users who load themselves into the vehicle.
Allows users to ride safely in their wheelchairs during transport, ensuring comfort and security throughout the ride.
Reduces setup time and eliminates the need for manual tie-down strap securing.
Often integrated with the vehicle’s lift system for smooth, automated operation.

Best Use Case:

Perfect for users who transport their power wheelchair regularly, especially regular models, or for caregivers managing multiple daily trips. Docking systems enhance safety and convenience while minimizing physical strain.

Head & Back Restraints

Head and back restraints are additional support systems installed on the wheelchair or vehicle seat to prevent movement during sudden stops or collisions.

Who Needs Them:

Passengers with limited upper-body control or mobility challenges.
Individuals with conditions that make them more prone to injury during transport.

Benefits:

Enhances overall passenger safety by stabilizing posture.
Reduces the risk of whiplash, tipping, or spinal injury.
Often used in combination with 4-point tie-downs or docking systems for maximum protection.

Preparing Your Electric Wheelchair for Transport

Planning in advance is essential when preparing a power wheelchair for transport, whether you’ll be remaining in the wheelchair during travel or the chair will be transported separately. Before traveling, confirm your transportation plan, including the type of vehicle, securement system, and any necessary modifications to ensure accessibility and convenience.

The right preparation helps ensure the safety of both the user and the equipment, while protecting the wheelchair’s electronic components and maintaining its structural integrity. Following these steps ensures that electronics, batteries, and movable parts are protected, helping to prevent damage or accidents during travel.

If you’re flying, always check airline policies in advance regarding power wheelchair batteries and securement. These vary by carrier and are especially important for compliance and avoiding travel delays.

During boarding and loading, expect assistance from trained drivers or staff to ensure safe positioning and securement, whether you’re seated in the chair or it’s being transported independently.

Power Off & Lock Position

Turning off the wheelchair and engaging any locking mechanisms prevents accidental movement and protects sensitive electronics while loading, unloading, or during transit. However, whether the chair stays powered on depends on the travel scenario:

If You’re Remaining in the Wheelchair:

The wheelchair can stay powered on during securement to allow for joystick control or positioning.
Once secured, set the power to “off” or “lock mode” if your chair has one, to prevent unintentional movement.

If the Wheelchair is Transported Separately:

Always power off the chair before using a lift, ramp, or tie-down system.
Engage the wheel locks or brakes.
Make sure joysticks and control panels are in the neutral or off position.

These steps protect internal components from vibration damage and ensure stability throughout the trip.

Remove Loose Items

Loose accessories, bags, or detached parts can move during transport, posing a risk to passengers or the wheelchair itself. This applies to both transport methods.

If You’re Remaining in the Wheelchair:

Secure any bags or personal items to the wheelchair frame with straps.
Remove or fold away trays, cup holders, or other attachments that could shift.

If the Wheelchair is Transported Separately:

Remove all detachable items (cushions, trays, or side bags) and store them safely in a compartment or container.
Make sure all removable parts are secured or packed separately to prevent damage.

Taking a few minutes to remove or secure loose items reduces rattling, prevents scratches, and ensures smooth securement.

Battery & Charging Precautions

Power wheelchair batteries are crucial for optimal performance but can also be sensitive to vibration, temperature fluctuations, and improper handling during transportation. The correct precautions depend on how the chair is being transported.

If You’re Remaining in the Wheelchair:

Ensure the battery is fully charged before travel for uninterrupted mobility.
Confirm that all electrical connections are secure and cables are tucked away from tie-down points.
If your vehicle allows in-transit charging, use only manufacturer-approved equipment.

If the Wheelchair is Transported Separately:

Fully charge the battery before disconnection.
Follow the manufacturer’s instructions for safely detaching and securing the battery.
Store the battery upright, away from extreme heat or cold.
Inspect for leaks or corrosion before reinstallation.

Proper battery management prevents power loss, corrosion, and potential safety risks, keeping your electric wheelchair ready for immediate use upon arrival.

Maintenance Tips for Transport Equipment

Proper maintenance of your transport equipment is essential for safe, reliable, and long-lasting use. Regular upkeep reduces the risk of accidents, prevents costly repairs, and ensures your wheelchair can be transported smoothly every time.

When purchasing transport equipment, it is important to consider the maintenance requirements before making a purchase, as this can help you avoid unexpected costs and ensure your equipment remains in good working condition.

Monthly Inspections

Performing a monthly inspection helps identify potential issues before they become serious problems. Key items to check include:

Wheelchair Vehicle Lift: Ensure the lift platform moves smoothly, bolts are tight, and the hydraulic or electrical systems operate without unusual noises.
Ramps: Check for bends, cracks, or loose hinges. Verify that anti-slip surfaces are intact.
Tie-Downs & Docking Systems: Examine straps, hooks, and locking mechanisms for fraying, wear, or damage. Test that the wheelchair secures properly.
Vehicle Modifications: Look for loose screws, worn flooring, or any component that could affect stability or safety.

Tip: Keep a checklist and record inspection dates to maintain consistent upkeep.

Cleaning & Lubrication

Regular cleaning prevents rust, corrosion, and malfunction of moving parts. Recommended practices include:

Lifts & Ramps: Wipe down with a damp cloth to remove dirt and debris. Avoid harsh chemicals that could damage hydraulic components or non-slip surfaces.
Lubrication: Apply manufacturer-recommended lubricants to hinges, joints, and moving parts to maintain smooth operation.
Tie-Downs & Docking Systems: Clean straps with mild soap and water, and inspect hooks for rust or bending.

Tip: Clean after exposure to rain, snow, or road salt to prevent corrosion and ensure consistently reliable performance.

When to Service or Replace Equipment

Even with regular maintenance, some equipment may need professional attention or replacement. Look out for:

Jerky or uneven lift movement, unusual noises, or hydraulic leaks.
Ramps or securement systems that no longer hold the wheelchair firmly.
Corrosion, rust, or cracks on metal components.
Any electrical malfunction or irregular behavior in powered lifts or docking systems.

Tip: If in doubt, always consult a certified mobility technician. Proper service ensures safety for both the passenger and the wheelchair during transport.

Common Questions About Transporting Electric Wheelchairs

Can I use a standard van to transport an electric wheelchair?

Most standard vans lack the necessary space and securement features. A mobility van is the safest option for transporting electric wheelchairs.

Do I need a lift or is a ramp enough?

It depends on your wheelchair’s weight and your physical needs. Lighter chairs may work with a ramp, but heavy electric wheelchairs are safest with a powered lift.

Are there any tax credits or funding options for mobility vehicles?

Yes. Federal tax credits and state-specific programs can help offset costs. Explore available Missouri grants or Illinois grants for more information regarding qualifications and how to apply.
